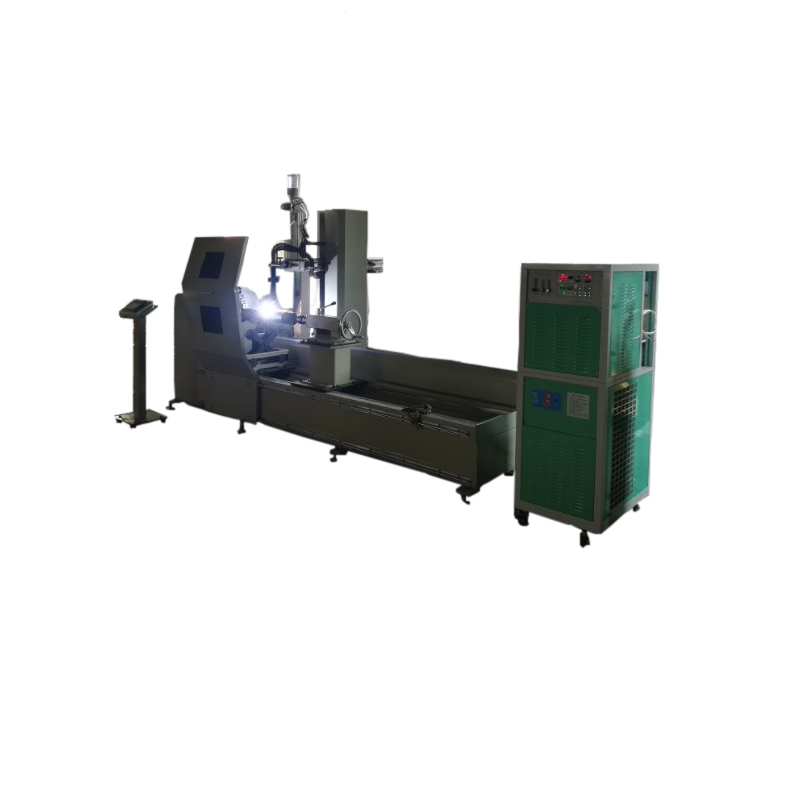

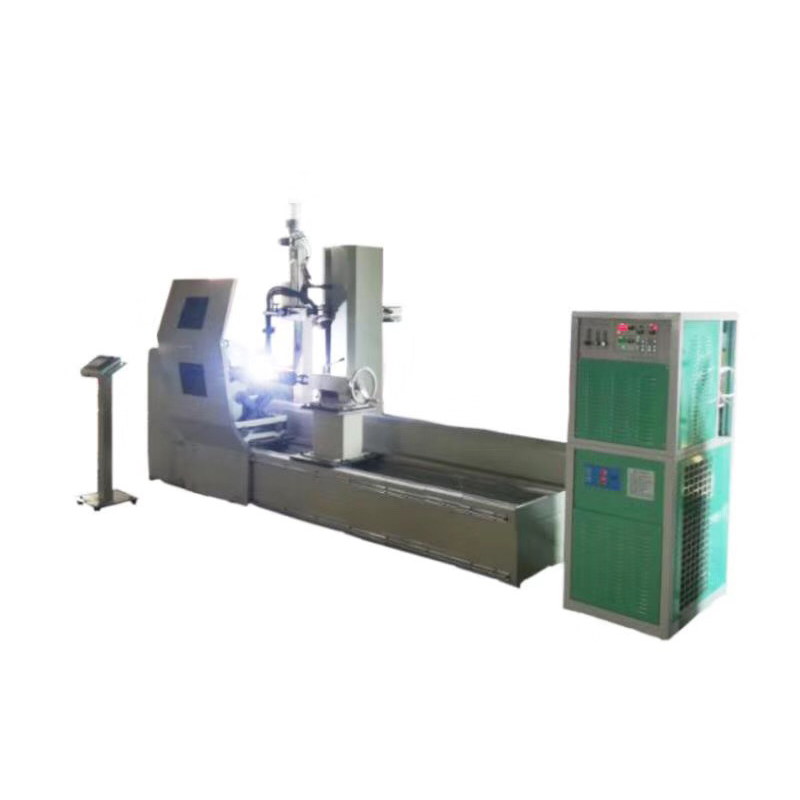

The machine is driven by imported linear guide, precision worm gear reducer and stepping motor, featuring small transmission clearance, high rigidity, and stable, reliable operation for convenient integration.

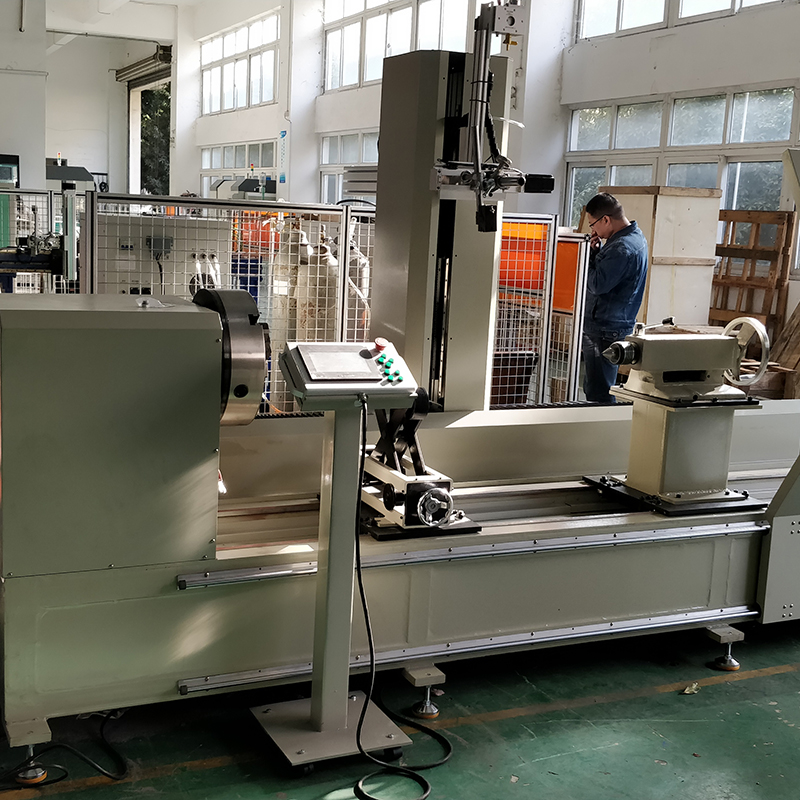

The head integrated design, complemented by an adjustable roller carrier and thimble tailstock, ensures the precise concentricity of the workpiece and the overall load management. This system is optimally suited for surfacing the outer circle and inner hole of general shaft parts and pipe parts. Additionally, it excels in the surfacing and repair of specialized components such as screws and centralizers.
Technical Specifications
| Configuration Items |
Model and Brand |
Description of Main Parameters |
| Axial displacement |
Stepping motor |
Effective stroke 2100mm |
| Lifting mechanism |
Stepping motor |
Effective stroke 600 mm |
| Telescopic beam |
Stepping motor |
Effective stroke 450mm |
| Spindle motor |
Servo motor |
Rotation speed 0.01r/min ~ 2.5r/min |
| Rotating spindle |
DXZ-10 |
Rated load 1000 kg |
| Chuck |
Clamping range of k11-400c is 25-400 mm |
| Touch screen |
7-inch screen |
TK6071IQ model |
| Arc voltage tracking |
Integrated system |
Automatic tracking enabled |
| Current communication |
485 communication |
Digital data transmission |
| Adjustable tug frame |
TLX-06 |
Rated load 600 kg |
| Thimble tailstock |
C6140A |
Rated load 1000 kg |
| Welding wiggler |
GCH6A-100 |
Swing speed 1-90 mm/s; Swing distance 3-50 mm |
| Reference footprint |
Length: 4500 mm, Width: 2500 mm, Height: 2000 mm |
Frequently Asked Questions (FAQ)
What types of parts can be processed with this surfacing machine?
This machine is specifically designed for surfacing the outer circle and inner hole of general shaft parts and pipe parts. It is also highly effective for repairing screws, centralizers, and other similar industrial components.
How is the precision of the transmission system ensured?
The machine utilizes imported linear guides, precision worm gear reducers, and high-quality stepping motors. This combination ensures small transmission clearance, high rigidity, and extremely stable operation.
What is the maximum load capacity for the rotating spindle?
The rotating spindle (Model DXZ-10) is rated for a load of up to 1000 kg, allowing it to handle heavy-duty shaft and pipe components with ease.
What are the effective strokes for the different axes of movement?
The axial displacement offers an effective stroke of 2100mm, the lifting mechanism provides 600mm, and the telescopic beam allows for 450mm of movement.
How does the machine maintain workpiece concentricity?
Workpiece concentricity is maintained through an integrated head design combined with an adjustable roller carrier and a thimble tailstock, ensuring accuracy throughout the surfacing process.
What kind of control interface does the machine use?
The system is equipped with a 7-inch touch screen (TK6071IQ) and features a handheld touch control box for convenient mobile operation and parameter adjustment.
