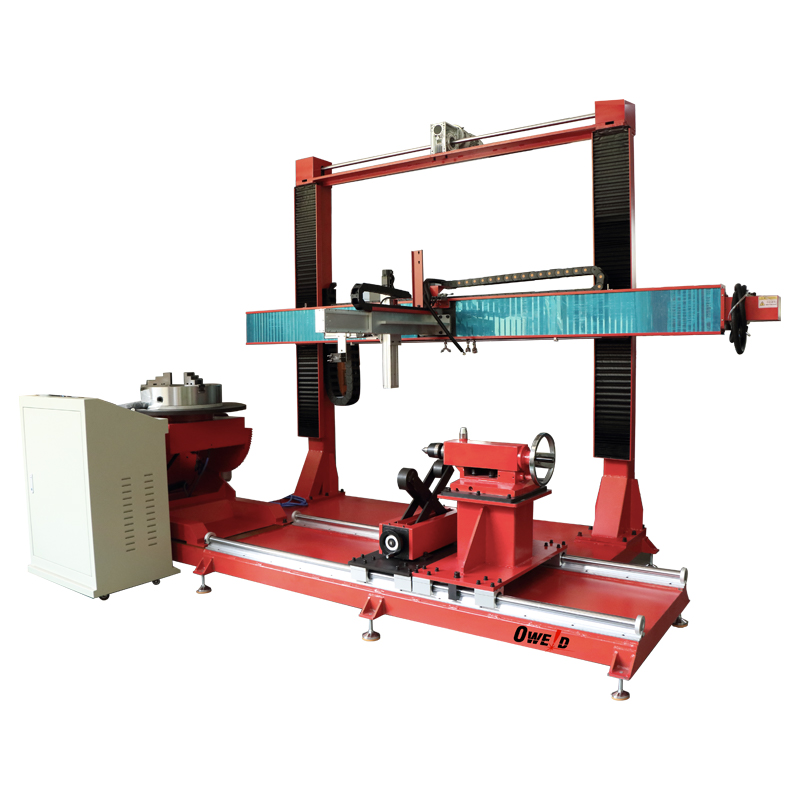

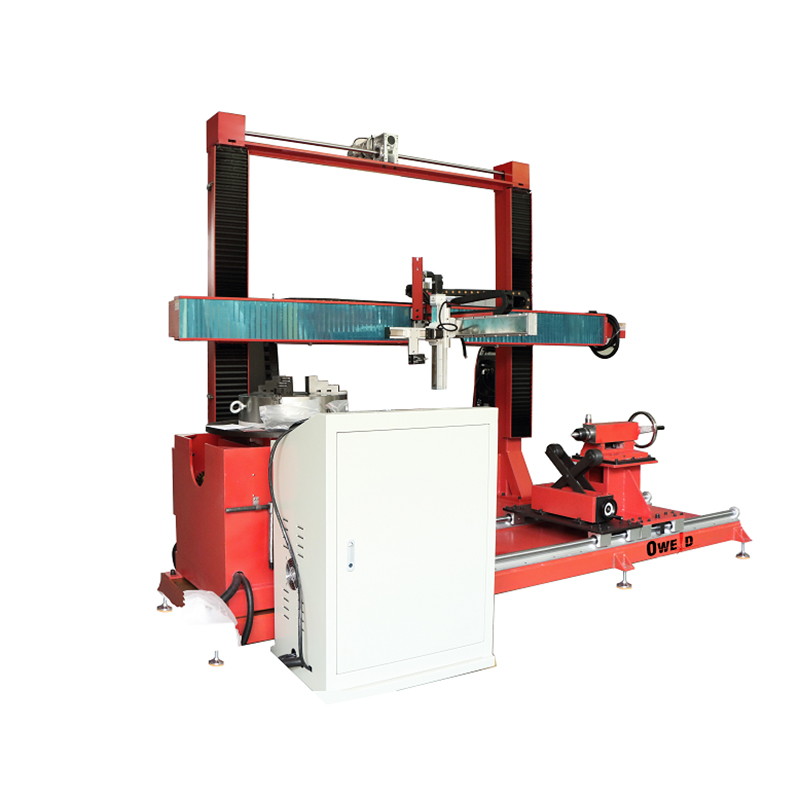

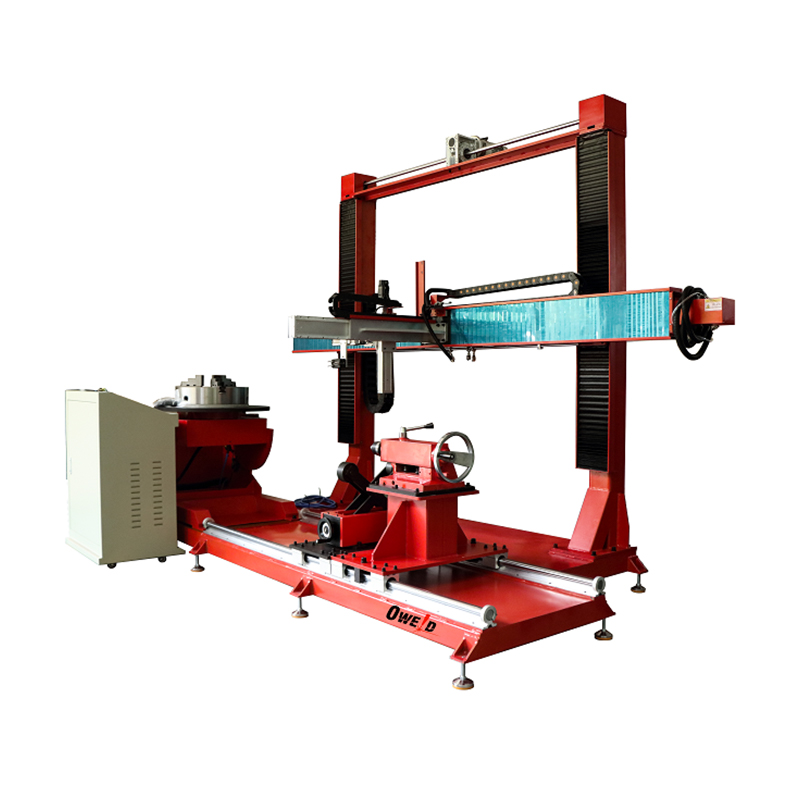

It is highly suitable for surfacing and repairing wear-resistant layers on general shaft parts and pipe parts. Additionally, it can be utilized for precision surfacing of discs and special-shaped mechanical components.
| Configuration Items | Model and Brand | Description of Main Parameters |
|---|---|---|
| Main beam | Xinjie servo motor | Effective stroke: 2000 mm |
| Double column lifting mechanism | Research and control stepping motor | Effective stroke: 800 mm |
| Cantilever beam | Xinjie servo motor | Effective stroke: 500 mm |
| Rotating spindle | Xinjie servo motor | Rotating speed: 0.01r/min ~ 3.0r/min |
| Flip spindle | Common AC motor | Rotation speed: 0.01r/min ~ 0.8r/min |
| Up and down adjustment | Xinjie servo motor | Effective stroke: 300 mm |
| Welding positioner | HBT-06 | Rated load: 600 kg |
| Three-jaw chuck | K11-500C | Clamping range: 25-500 mm |
| Touch screen | Wellington | 7-inch screen (TK6071IQ) |
| Arc voltage tracking | Multi-wood integration | Precision tracking enabled |
| Current communication | 485 communication | Standard industrial protocol |
| Adjustable tug frame | TLX-06 | Rated load: 600 kg |
| Thimble tailstock | C6140A | Rated load: 1000 kg |
| Welding wiggler | KK50-150 | Swing speed: 1-90 mm/s; Swing distance: 3-50 mm |
| Integrated control cabinet | Stefan | 4-axis CNC system |
| Mitsubishi, Japan | FX series PLC | |
| Console | Multiwood manufacturing | Mobile control platform, handheld touch control box |
| Reference footprint | 5000mm * 2800mm * 2400mm | |
