The mechanical walking mechanism adopts imported linear guide rail, driven by stepper motor, with small transmission clearance, high rigidity, and stable operation.
Full welding process automation ensures efficient production, improves labor productivity, and significantly reduces labor intensity.
The alloy layer achieves metallurgical bonding with the workpiece substrate, providing high bonding strength and a compact, beautiful structure.
Fast surfacing speed with a low dilution rate (controlled within 5% - 10%), ensuring high-quality protective layers.

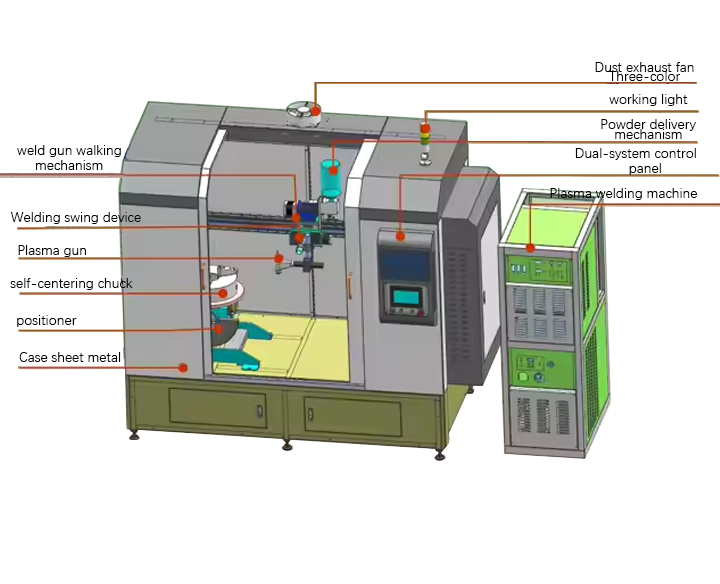

Compact integrated structure, easy to transport and move. Equipped with lighting, exhaust fan, and shading mobile protective door.
Humanized design suitable for pick-type tools and various small to medium-sized round shaft workpieces.
| Configuration Items | Model and Brand | Description of Main Parameters |
| Transverse mechanism motor | Stepping motor | Effective stroke 350mm |
| Lifting column motor | Stepping motor | Effective stroke 250mm |
| Spindle rotating motor | Servo motor | Rotation speed: 0.01r/min ~ 10R / min |
| Welding longitudinal fine adjustment | Precision manufacturing | Manual rotary trim |
| Three jaw chuck | K11-130C | Clamping range: 10-130 mm |
| Arc voltage tracking | Integrated system | High-precision tracking |
| Current communication | 485 communication | Automatic adjustment of current and powder feeding |
| Touch screen | 7-inch interface | Model tk6071iq |
| Control system | Industrial PLC | FX series programmable controller |
| Control panel | Integrated interface | Integrated on the equipment shell |
| Reference footprint | 2000mm * 2000mm * 800mm | |
