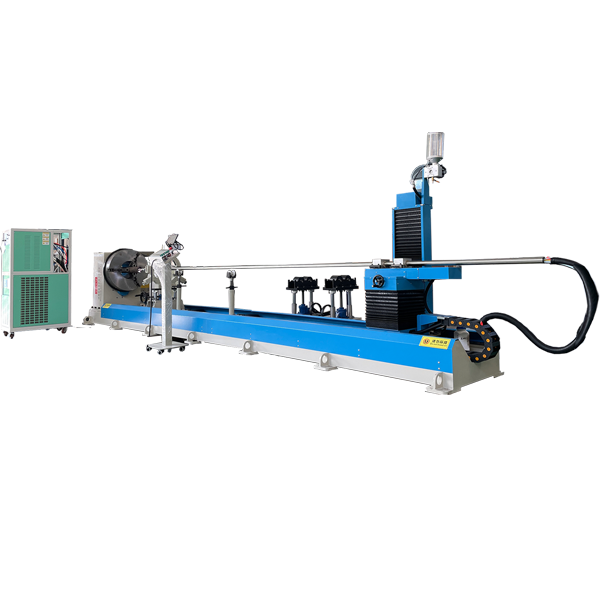

The mechanical walking mechanism is driven by imported linear guide rail, precision worm gear reducer and stepping motor. The whole machine has small transmission clearance, high rigidity, stable and reliable operation and convenient integration.

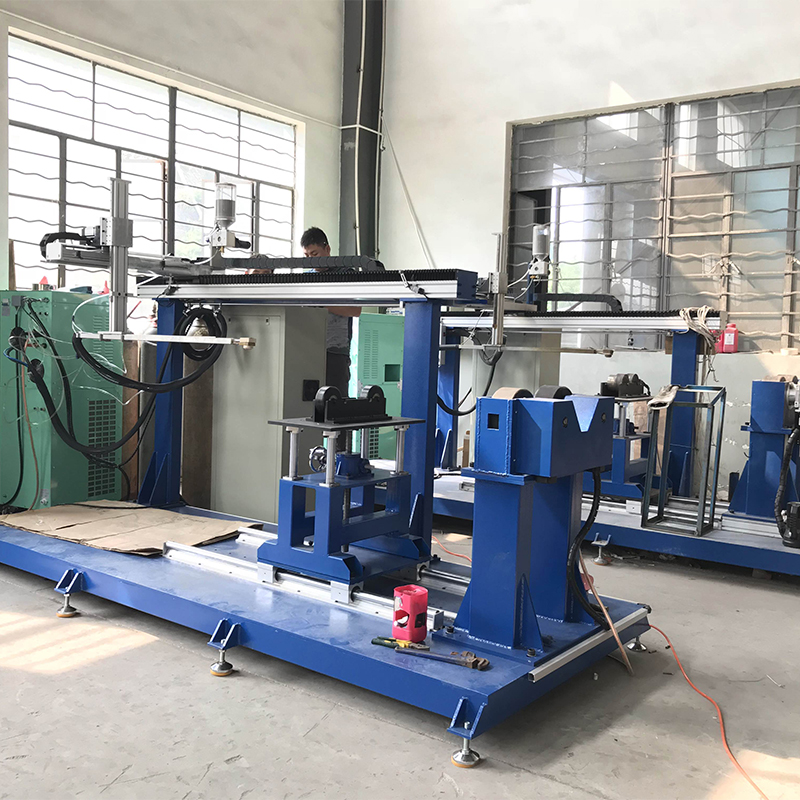

Welding roller carrier adopts double power, two wheels rotate at the same time. The driven wheel can be adjusted up and down, and can slide back and forth to meet the needs of all kinds of barrel products with different lengths.

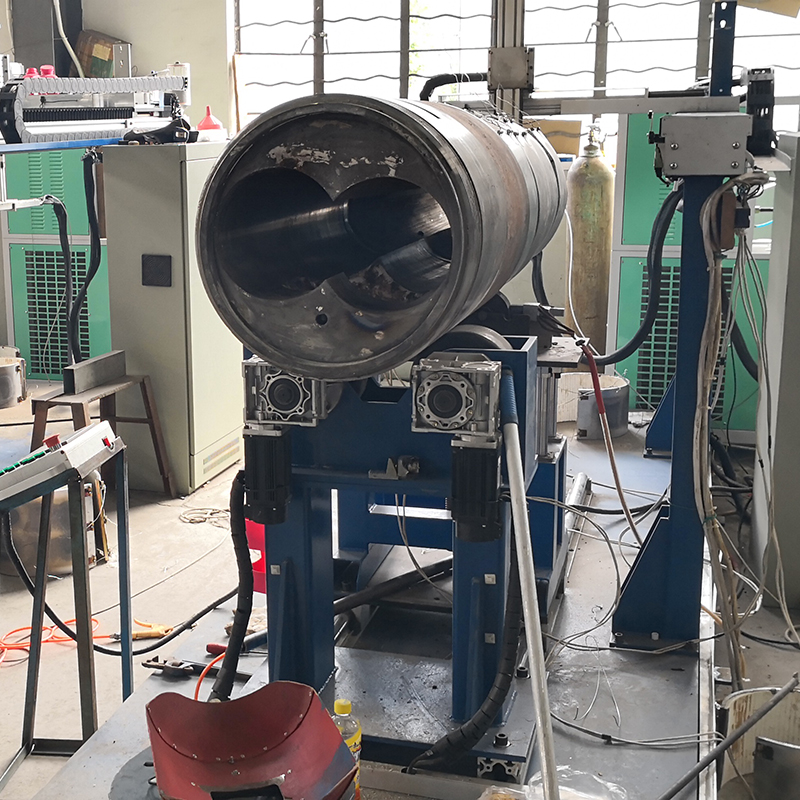

It is suitable for hardfacing and repairing the damaged surface of the outer circle and inner hole of general shaft parts and pipe parts. This product is mainly suitable for surfacing and surface repair of double barrel products.
| Configuration items | Model and brand | Description of main parameters |
|---|---|---|
| Axial displacement | Stepping motor | Effective stroke 1500 mm |
| Lifting mechanism | Stepping motor | Effective stroke 500 mm |
| Vertical mechanism | Servo motor | Effective stroke 400 mm |
| Power roller carrier | Servo motor | Maximum linear speed: 800mm / min |
| Rated load | Rated load 1000 kg | |
| Touch screen | Industrial grade | 7-inch screen |
| Arc voltage tracking | Integrated system | Automatic adjustment of welding torch distance in welding process |
| Current communication | 485 communication | Automatic adjustment of current and powder feeding |
| Adjustable tug frame | TLX-10 | Rated load 1000kg |
| Power Distribution Cabinet | Standard system integration | |
| Integrated base | Standard configuration | Dimension: l x w = 3.2x1.2m |
| Console | Standard configuration | Mobile control platform, handheld touch control box |
| Reference footprint | 4200mm*2000mm*2000mm | |
It is suitable for hardfacing and repairing the damaged outer circle and inner hole surfaces of general shaft parts, pipe parts, and is mainly designed for double barrel products.
The walking mechanism is driven by an imported linear guide rail, a precision worm gear reducer, and a stepping motor, ensuring small transmission clearance, high rigidity, and stable, reliable performance.
Yes. The welding roller carrier features a driven wheel that can be adjusted up and down and slid back and forth to match the requirements of various barrel lengths.
Both the power roller carrier and the adjustable tug frame support a rated load capacity of up to 1000 kg.
Yes. It features arc voltage tracking, which automatically adjusts the welding torch distance throughout the welding process to ensure consistent quality.
The reference footprint required for the equipment is 4200mm * 2000mm * 2000mm, with an integrated base dimension of 3.2m x 1.2m.
