The plasma power supply is a flagship product featuring multiple patent certificates and Austrian CE certification. Designed with humanization in mind, the color can be customized to match your specific requirements. It integrates seamless communication with tooling systems for optimized operation.
An internal cooling system is dedicated to the plasma torch. For enhanced safety, the panel features a dead-lock mechanism that halts the power supply immediately if faults are detected, ensuring substantial protection during operation.
The tooling is manufactured with an emphasis on ergonomic design and durability. High-quality materials are applied to critical components such as the guide slide, driver, and actuator to ensure long-lasting service and precision engineering.
Control Console: A concise design with a built-in electricity cabinet. Supports optional CNC or PLC control software, or compatibility with both for maximum flexibility.
Automation: Input your programming, and the system runs independently, significantly reducing labor intensity and increasing performance.
| Configuration Items | Model and Brand | Main Parameters |
|---|---|---|
| Transverse fixed arm suspension beam | Research and control stepping motor | Effective stroke 1900mm |
| Welding torch lifting mechanism | Research and control stepping motor | Effective stroke 150 mm |
| Walking base | Research and control stepping motor | Effective stroke 2300mm |
| Arc voltage tracking | Multi wood integration | Standard Integration |
| Current communication | 485 communication | Stable Data Link |
| Working platform | Customized | Application Specific |
| Console | Two axis CNC system programming, equipped with hand-held button control box. | |
| Reference footprint | 3600mm * 3400mm * 1900mm | |
A: The system holds multiple patent certificates and specifically features CE certification from Austria, ensuring compliance with international safety and quality standards.
A: It features an internal cooling system for the plasma torch and a safety "dead lock" mechanism on the panel that halts the power supply automatically if any faults occur.
A: The system offers a flexible control console compatible with CNC or PLC software, or both, and includes a hand-held button control box for ease of use.
A: The surfacing process is highly efficient, allowing the dilution ratio to be controlled within a low range of 5% - 10% or even less.

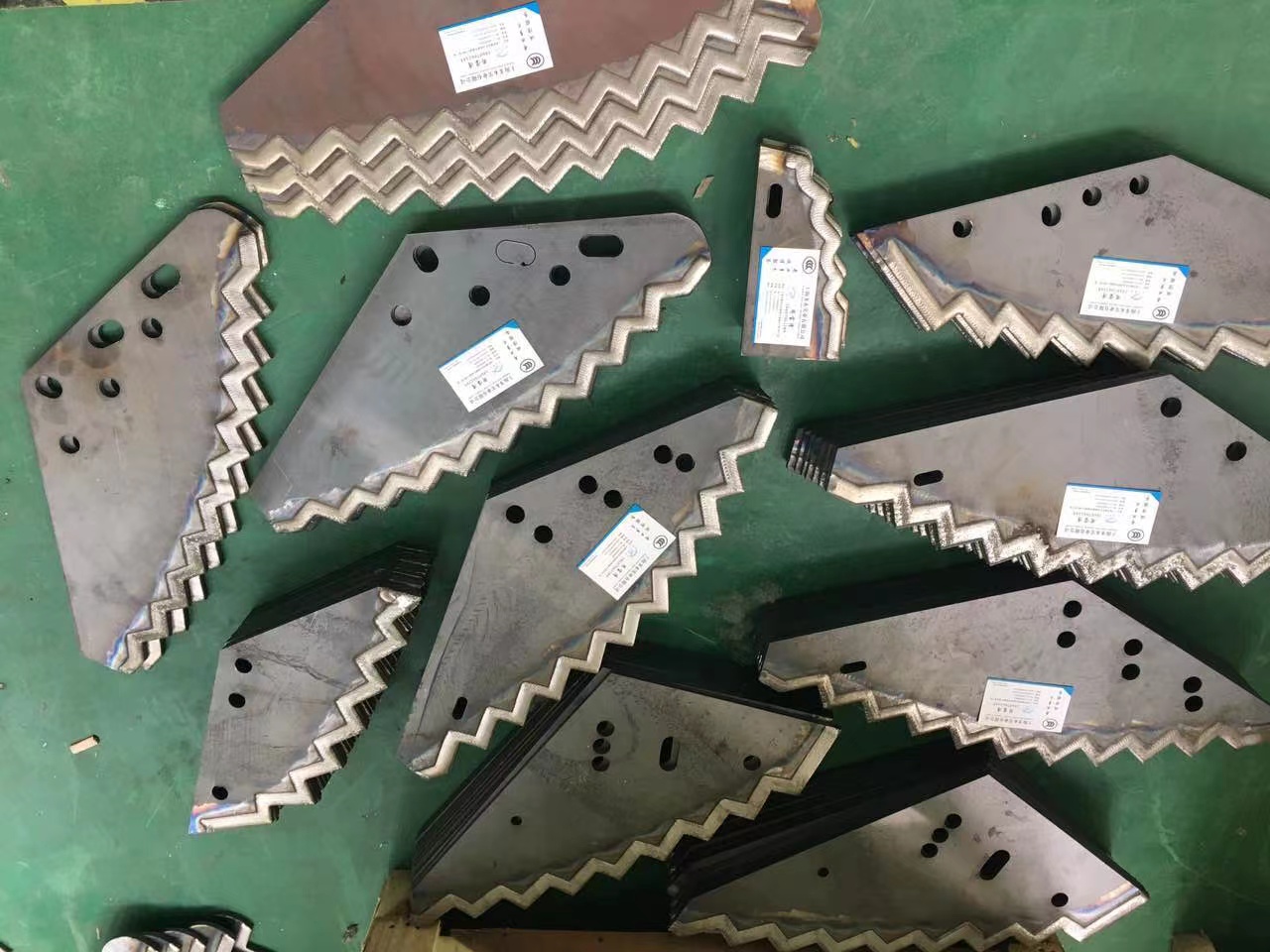

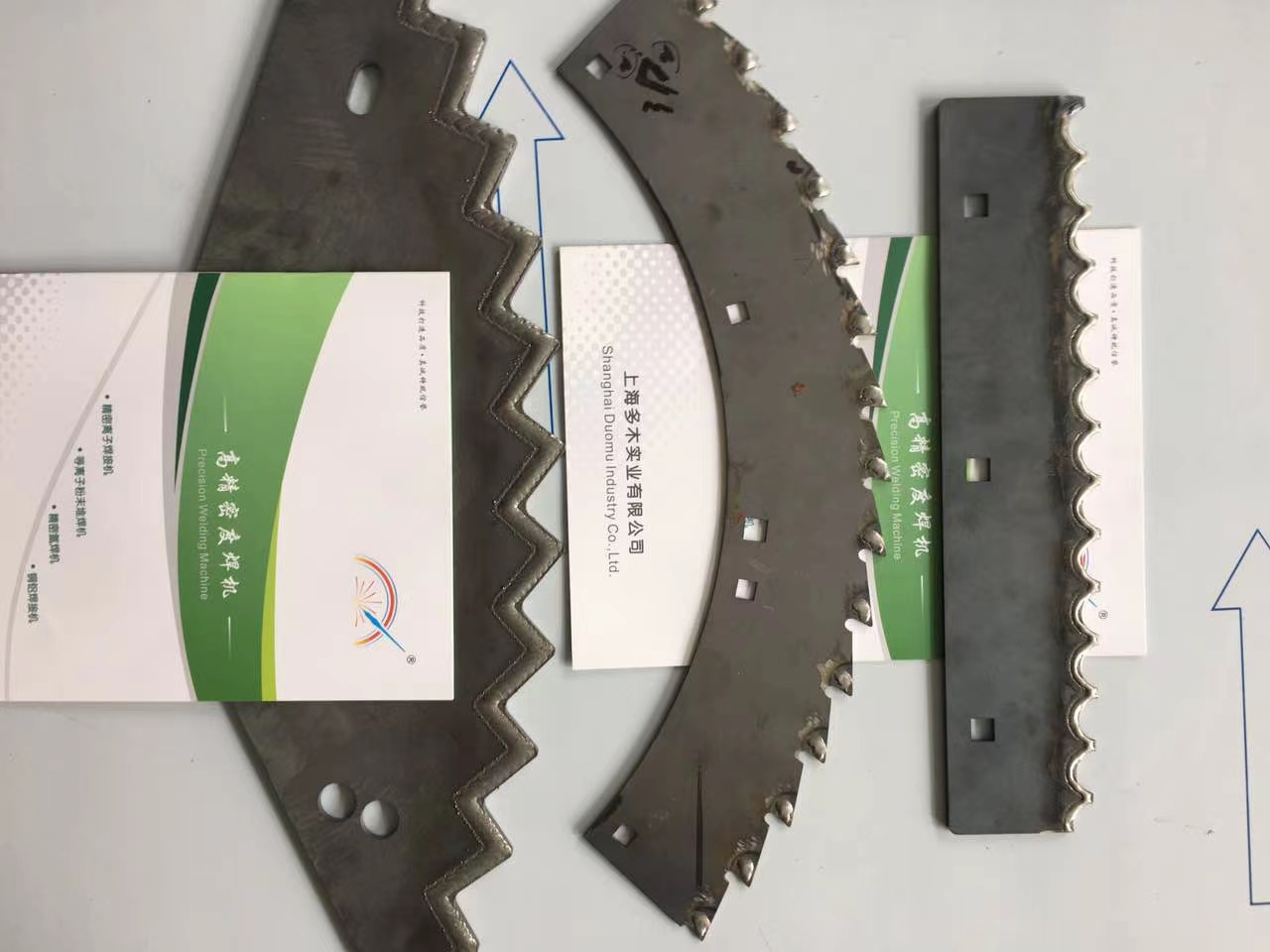

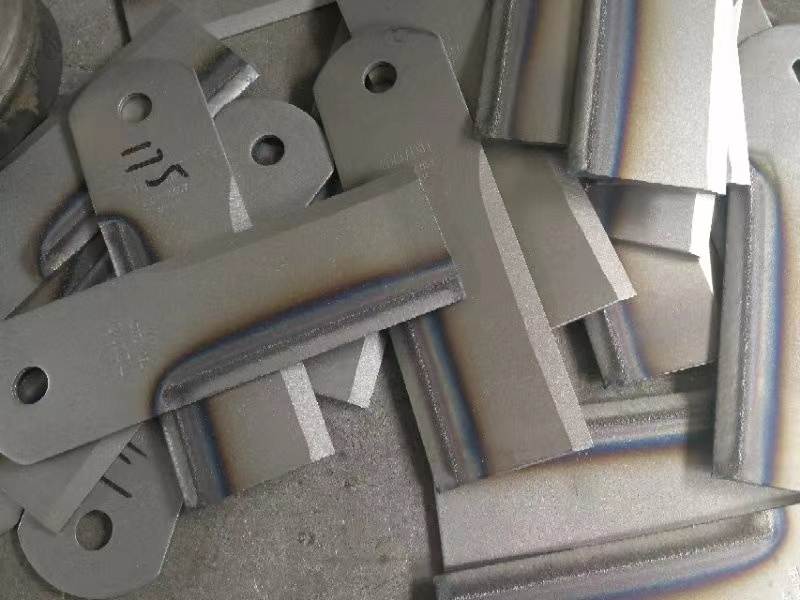

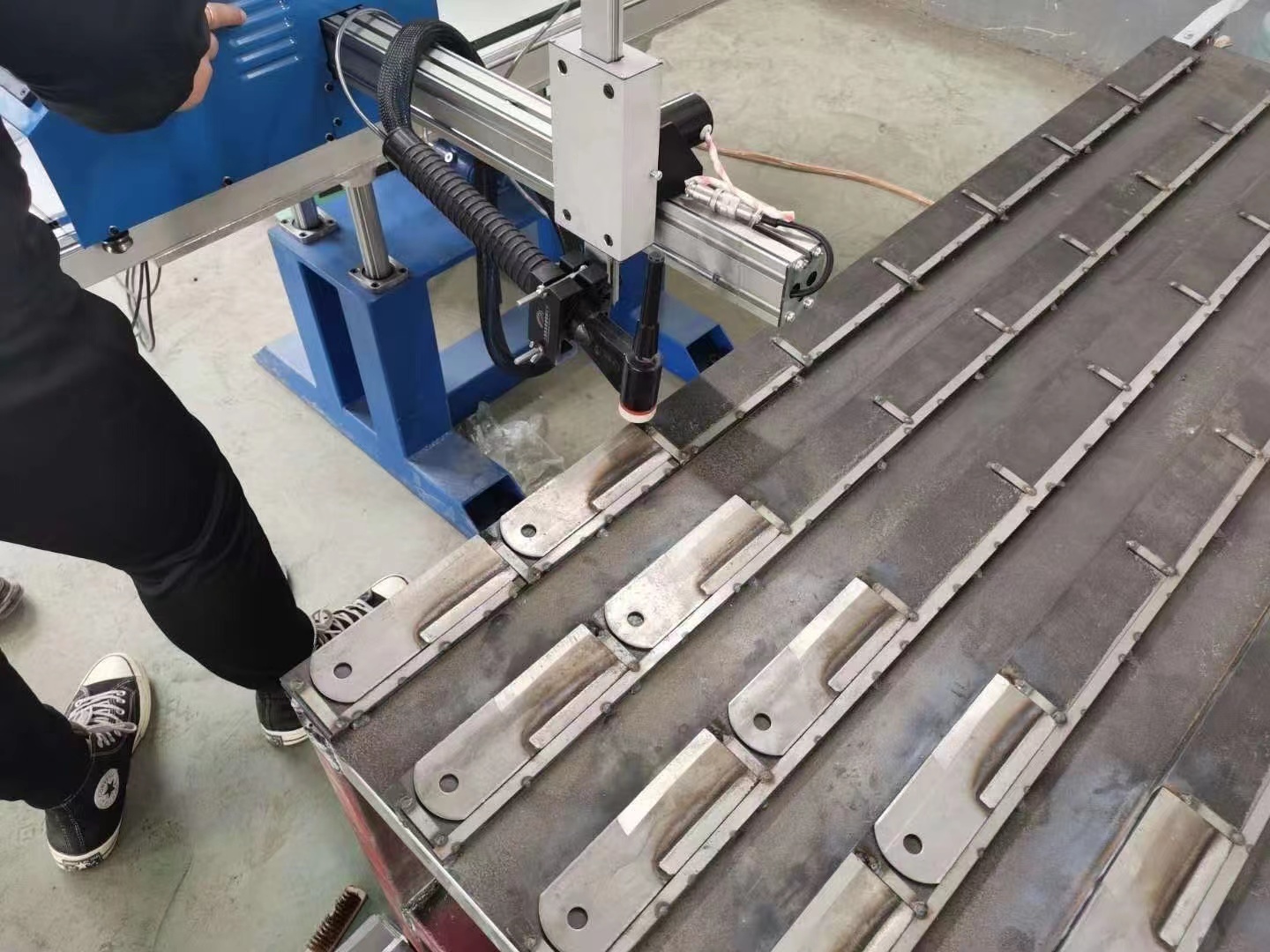

A: Yes, it is specifically designed for surfacing and surface repair of plane products, providing metallurgical bonding with high strength.
A: The walking mechanism utilizes imported linear guide rails, precision worm gear reducers, and stepping motors to achieve stable and reliable operation with minimal transmission clearance.
