High-Quality 120A Deep Hole Welding Torch Suppliers, Factories

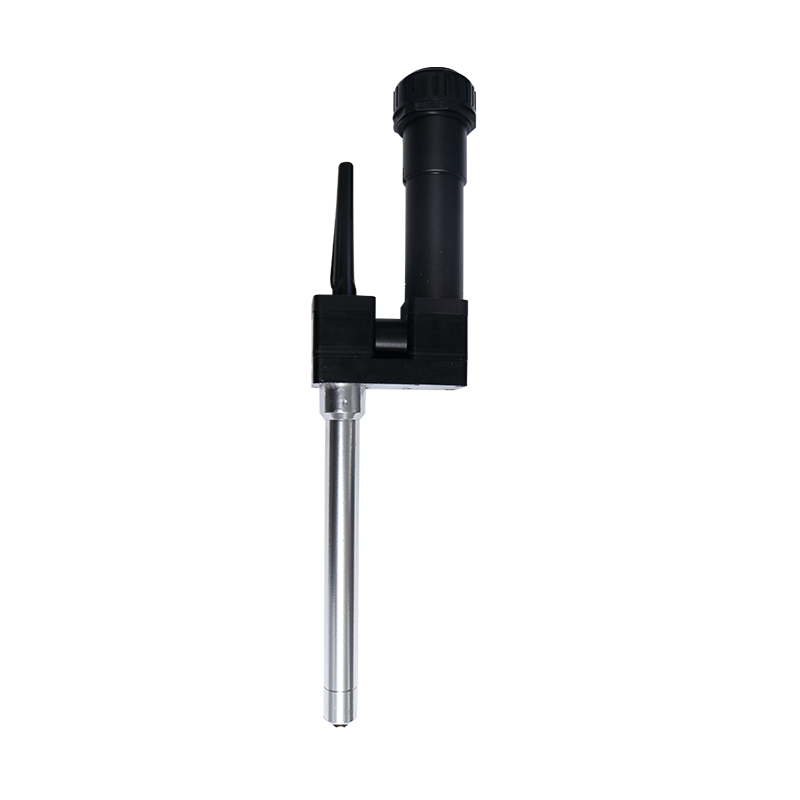

120A Deep Hole Welding Torch is a high-efficiency welding tool designed for narrow space and deep hole parts, with high current output, good heat dissipation, compact structure, easy maintenance, etc. It is widely used in mold repair, pressure vessel, aerospace, and other precision welding fields, supporting customized lengths and cooling modes, and adapting to a wide range of welding equipment.
High current output: Supports stable 120A current, suitable for a variety of welding conditions.
Specialized for deep holes: Long extension length allows precise welding in narrow or deep holes.
Efficient heat dissipation: Water-cooled system ensures long-time stable operation and prolongs service life.
Modularized design: Nozzle, electrode and other components can be quickly replaced for easy maintenance.
High compatibility: Can be interfaced with a variety of automation equipment or robotic systems.
Safe operation: High-grade insulating materials provide high temperature and anti-leakage protection.
120A Deep Hole Welding Torch Specifications
Model Number
DSPT12020-HQ
Tungsten Pole
3.2mm
Current Range
10-100A
Copper Nozzle Cooling Method
Direct water cooling
Ionized Gas
1.0-3.0L/min
Protective Gas
5-10L/min
Powder Feed Gas
1.0-3.0L/min
Copper Nozzle Powder Runner
Two Way
Powder Feeding Capacity
0-1.5KG/h
Welding Torch Return Water Flow
3.6L/Min
Granularity
100-270 mesh

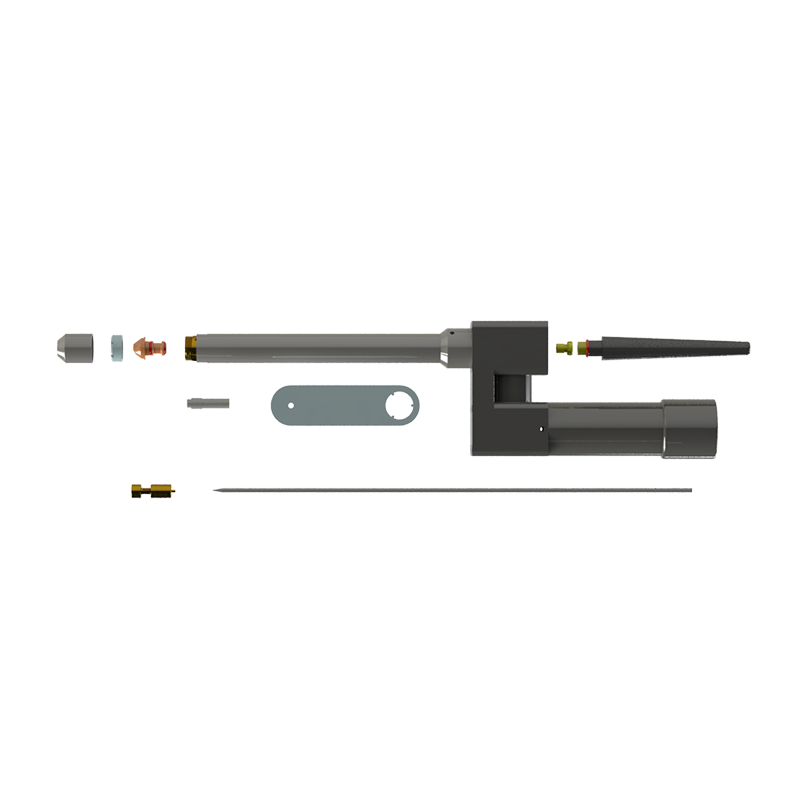

Serial No.
Product Name
Material Code
Product Dimension
A
120A deep hole welding torch (20 models)
D2120000
/
1
120A Deep Hole Rear Cap
D2020500
116*20
2
120A Deep Hole Rear Cap Rubber Ring
D2020510
13*2.4
3
120A Deep Hole Tungsten Pole Clamp
D2020400
12*10.5
4
120A Deep Hole Protection Air Ring
D2120800
22*205
5
120A deep hole copper nozzle small rubber ring
D2120600
10*1
6
120A Deep Hole Copper Nozzle Large Rubber Ring
D2120700
11*1.9
7
120A deep hole copper nozzle
D2120100
25*17
8
120A Deep Hole Locking Ring
D2120200
10*8
9
120A Deep Hole Protection Cover
D2120300
26*22
10
120A deep hole copper spout key
D2120400
110*30
11
120A deep hole centering ring
D2040201
31*8
12
120A deep hole tungsten needle
D2120500
3.2*350
13
Tungsten pole calibrator (universal)
D2000100
10*32
Frequently Asked Questions
Q1: What is the primary use of the DSPT12020-HQ welding torch?A: It is specifically designed for deep hole and narrow space welding, supporting a stable 120A current for various industrial applications.
Q2: How is the copper nozzle cooled during operation?A: The torch utilizes a direct water cooling method, requiring a return water flow of approximately 3.6L/Min to maintain optimal temperature.
Q3: What size tungsten needle is compatible with this torch?A: This model is designed for use with a 3.2mm diameter tungsten pole, specifically the 3.2*350 model (D2120500).
Q4: Can this torch be integrated with robotic welding systems?A: Yes, it features high compatibility and a modularized design, making it easy to interface with automated equipment and robotic arms.
Q5: What is the powder feeding capacity of this welding torch?A: The torch supports a powder feeding capacity ranging from 0 to 1.5KG/h, using a two-way copper nozzle powder runner.
Q6: Are the wearing parts easily replaceable?A: Yes, the modular design allows for quick replacement of the nozzle, electrode, and rubber rings, ensuring minimal downtime for maintenance.
